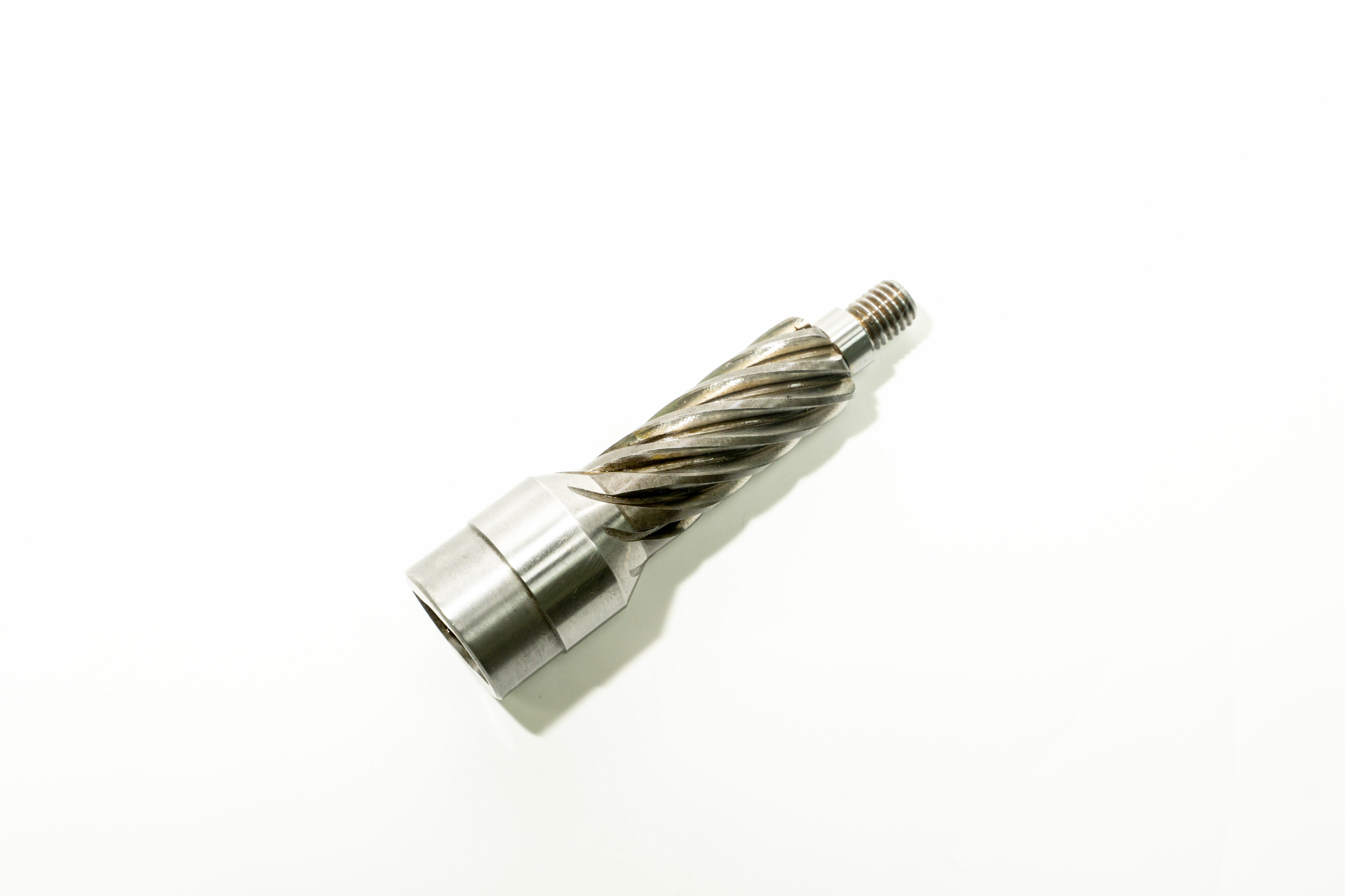

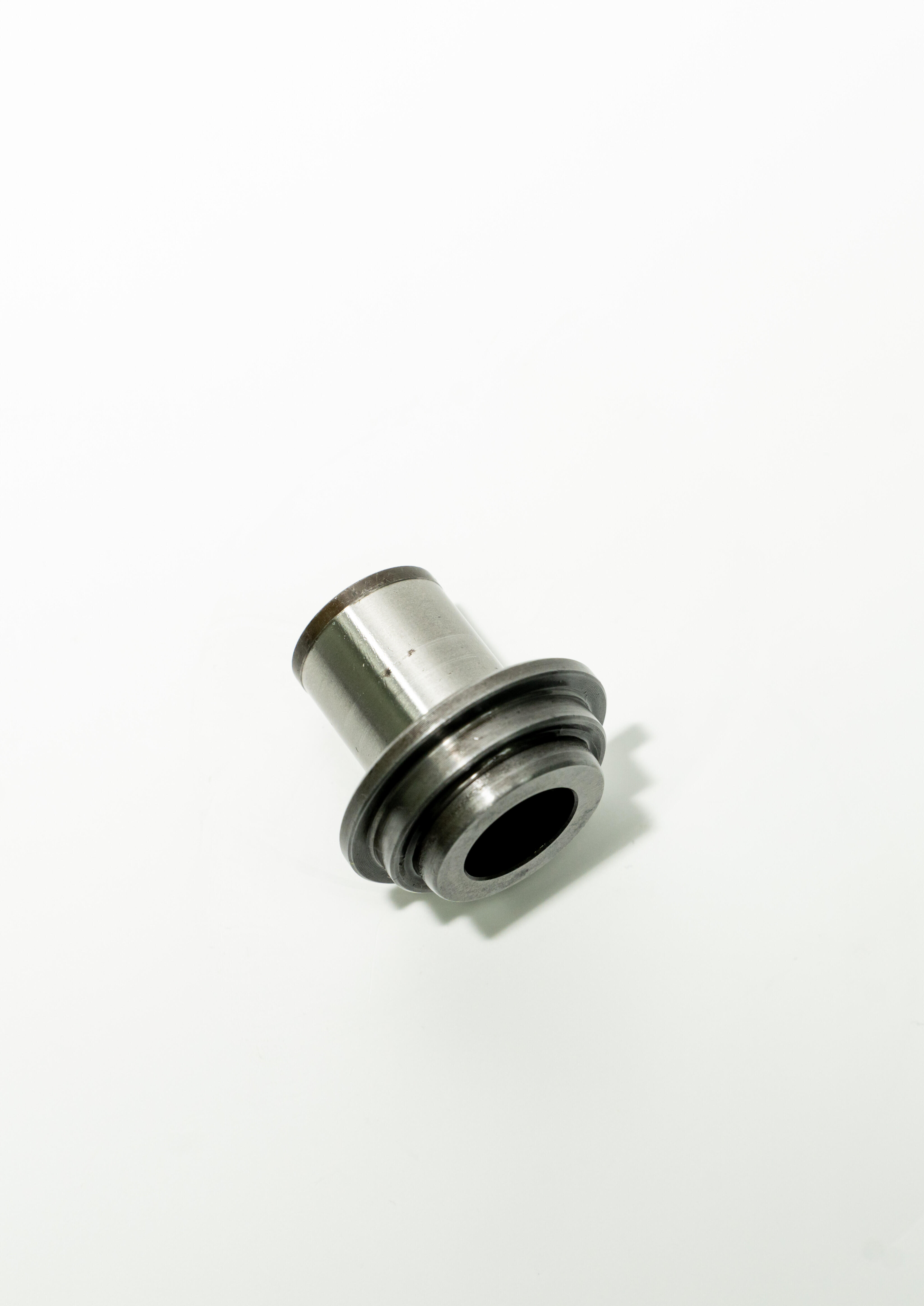

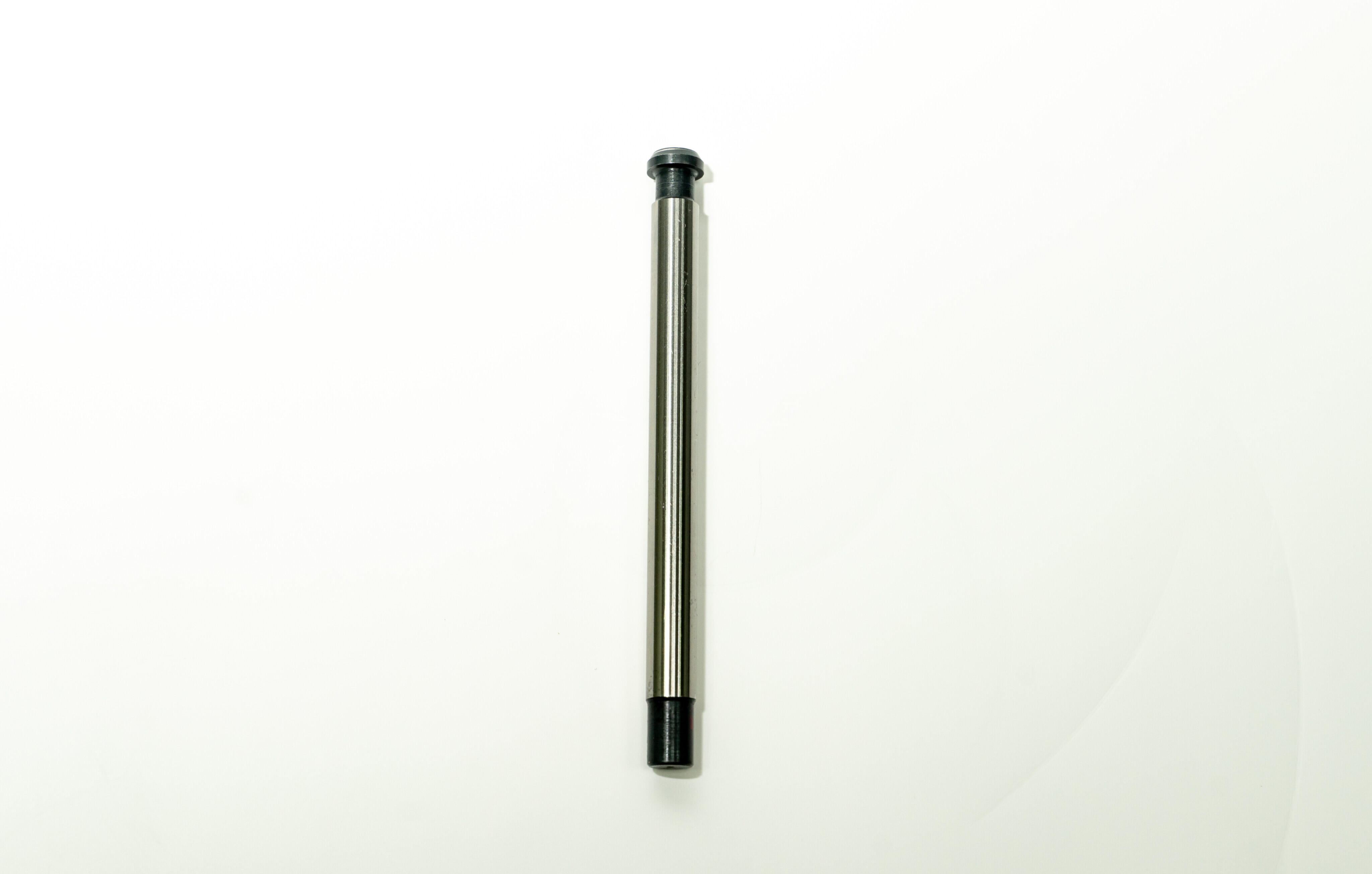

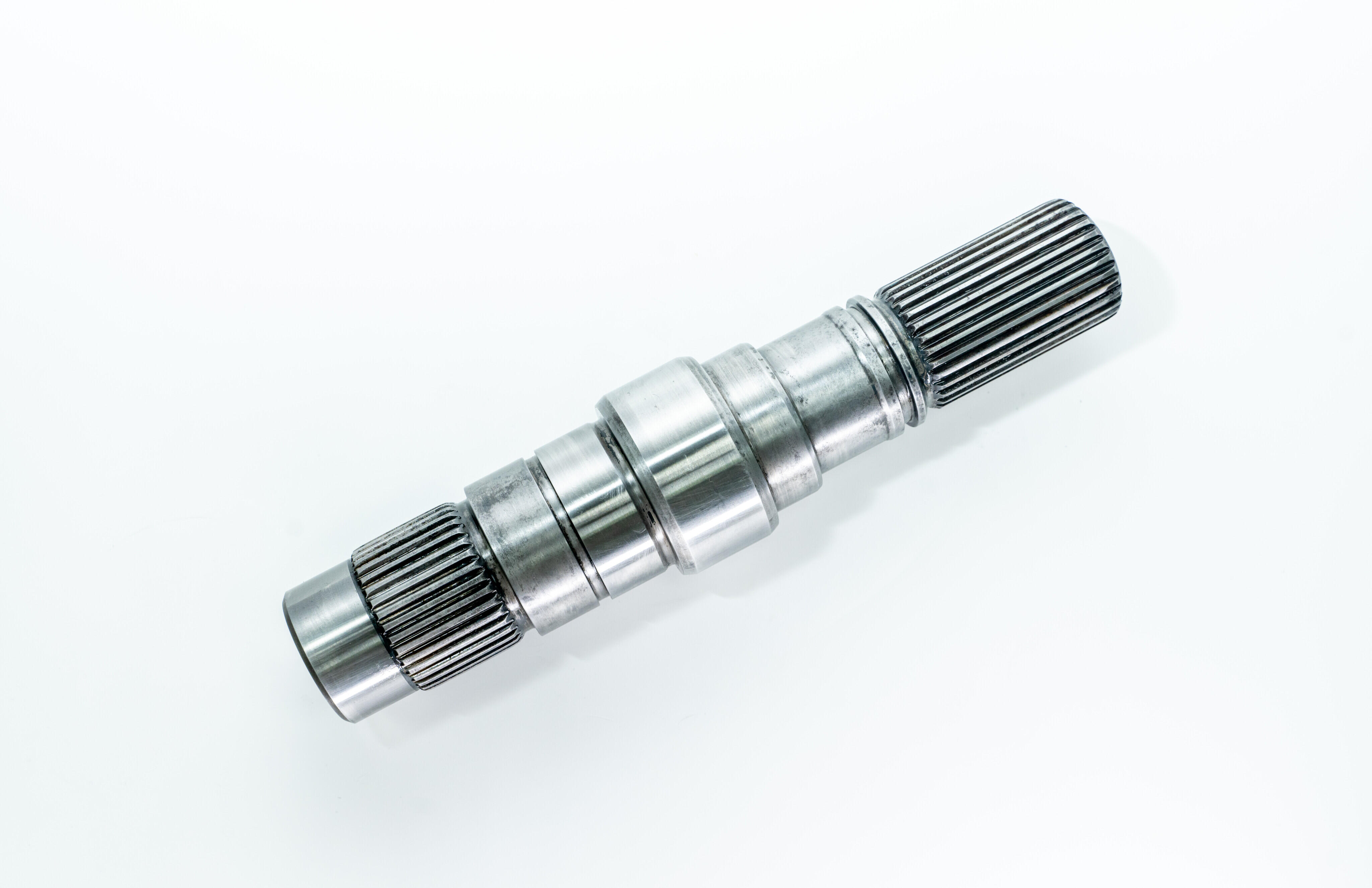

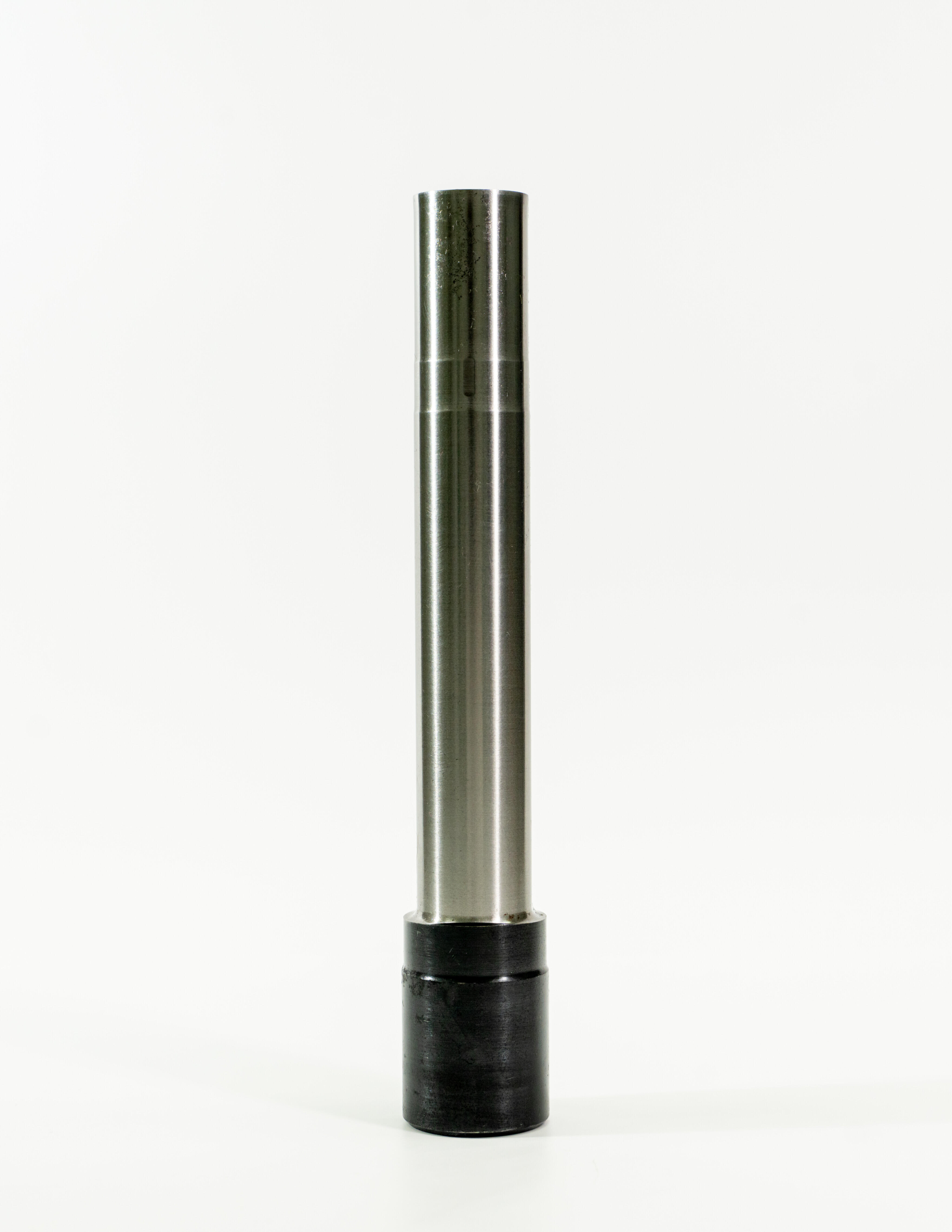

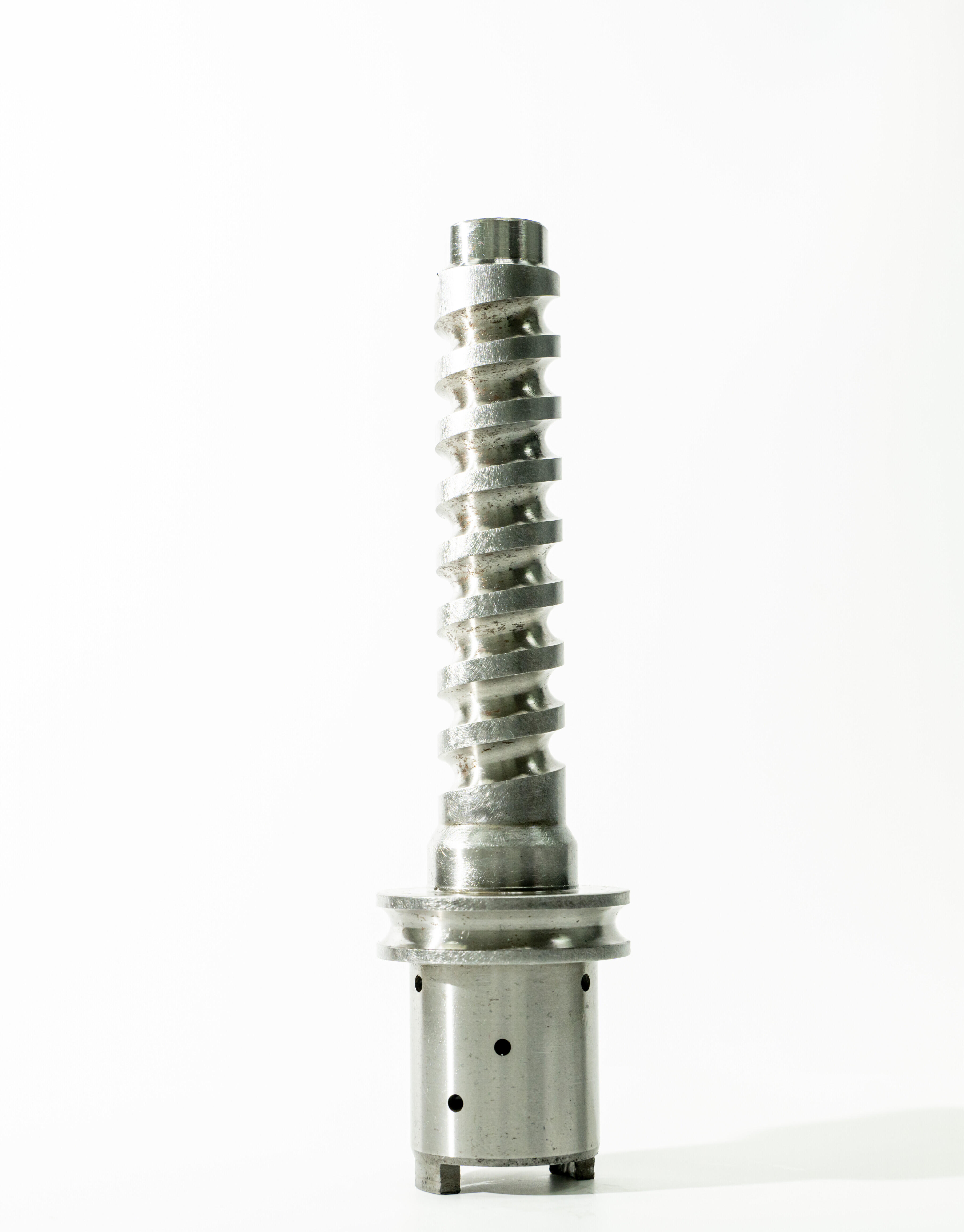

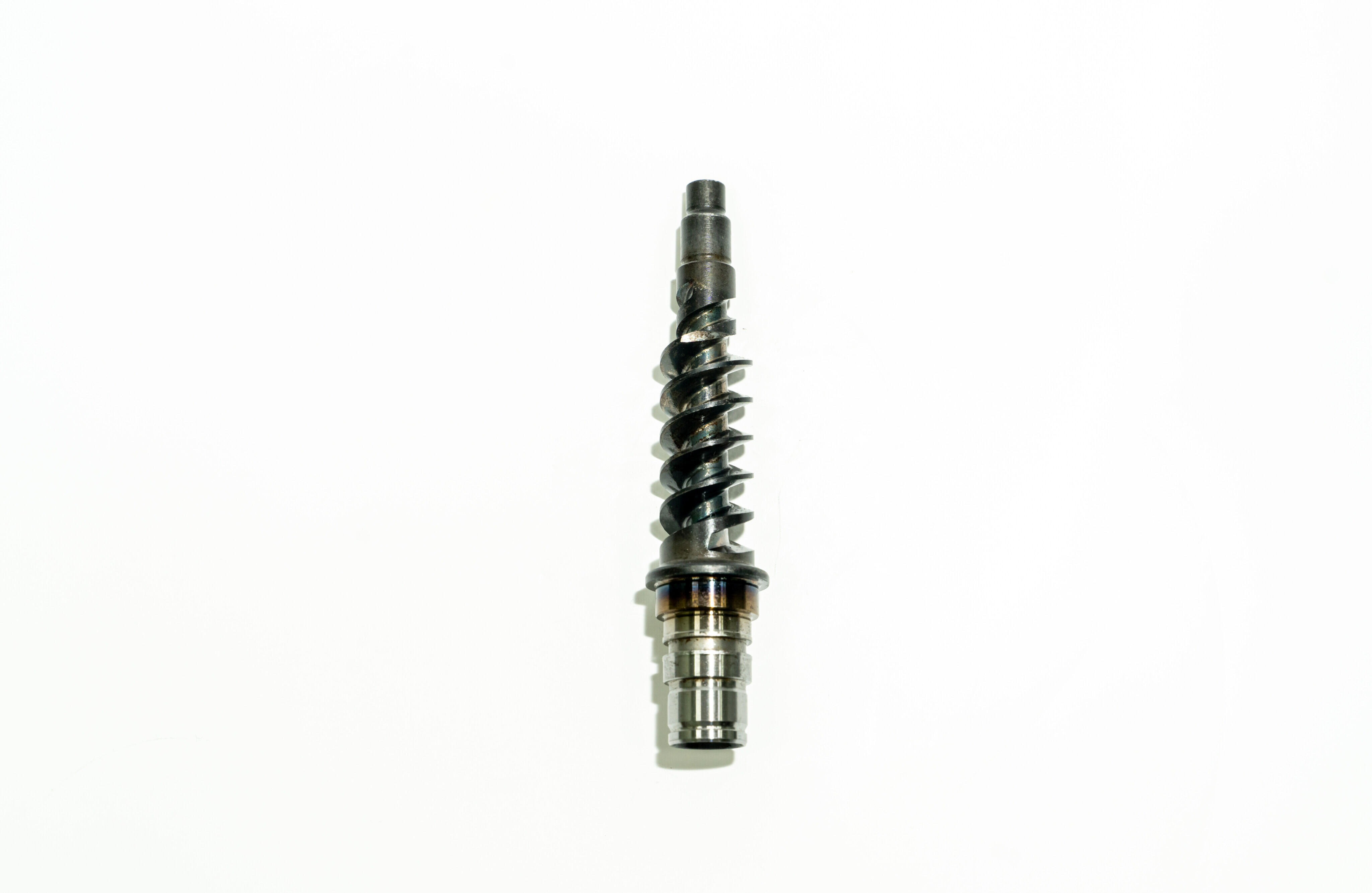

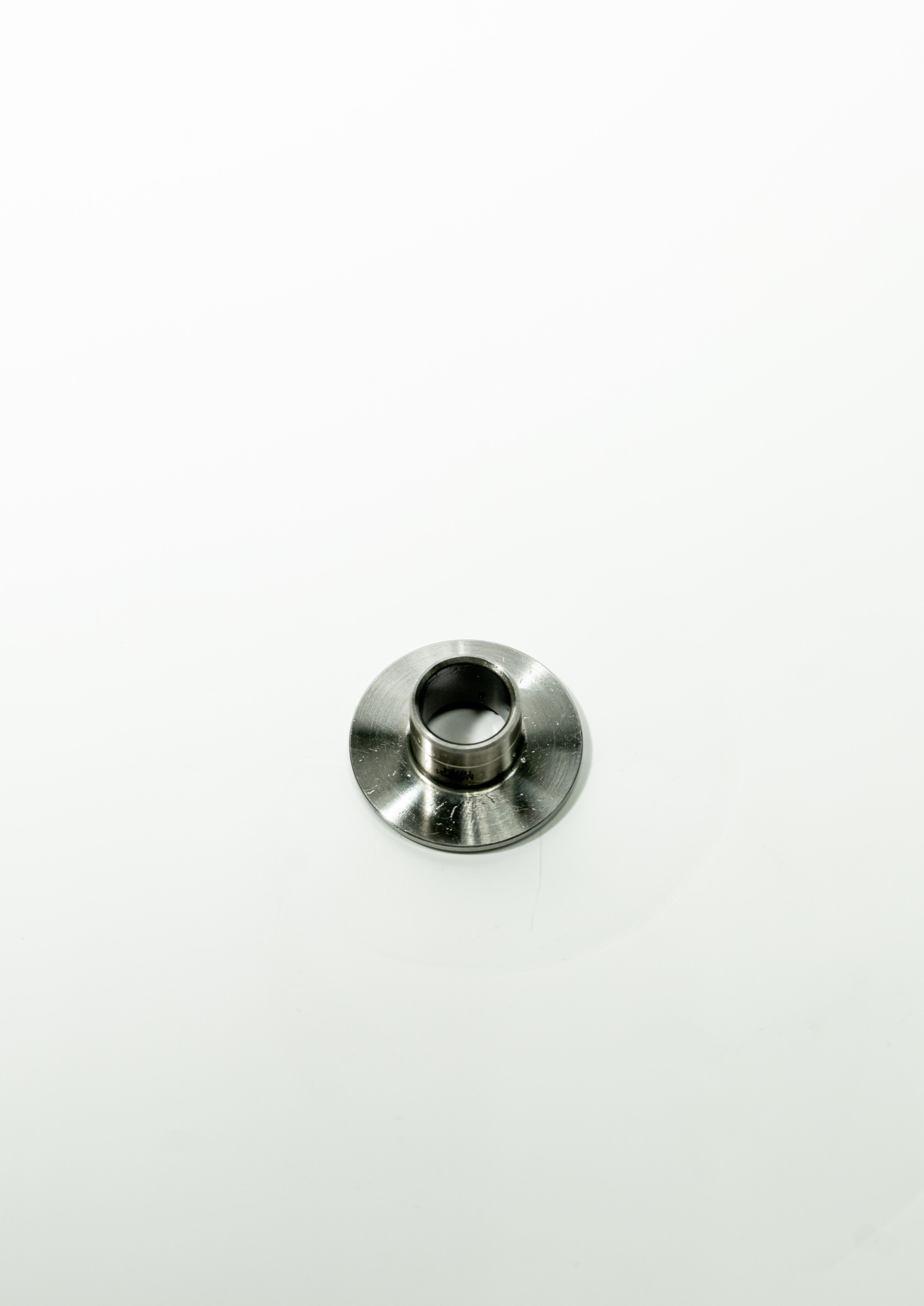

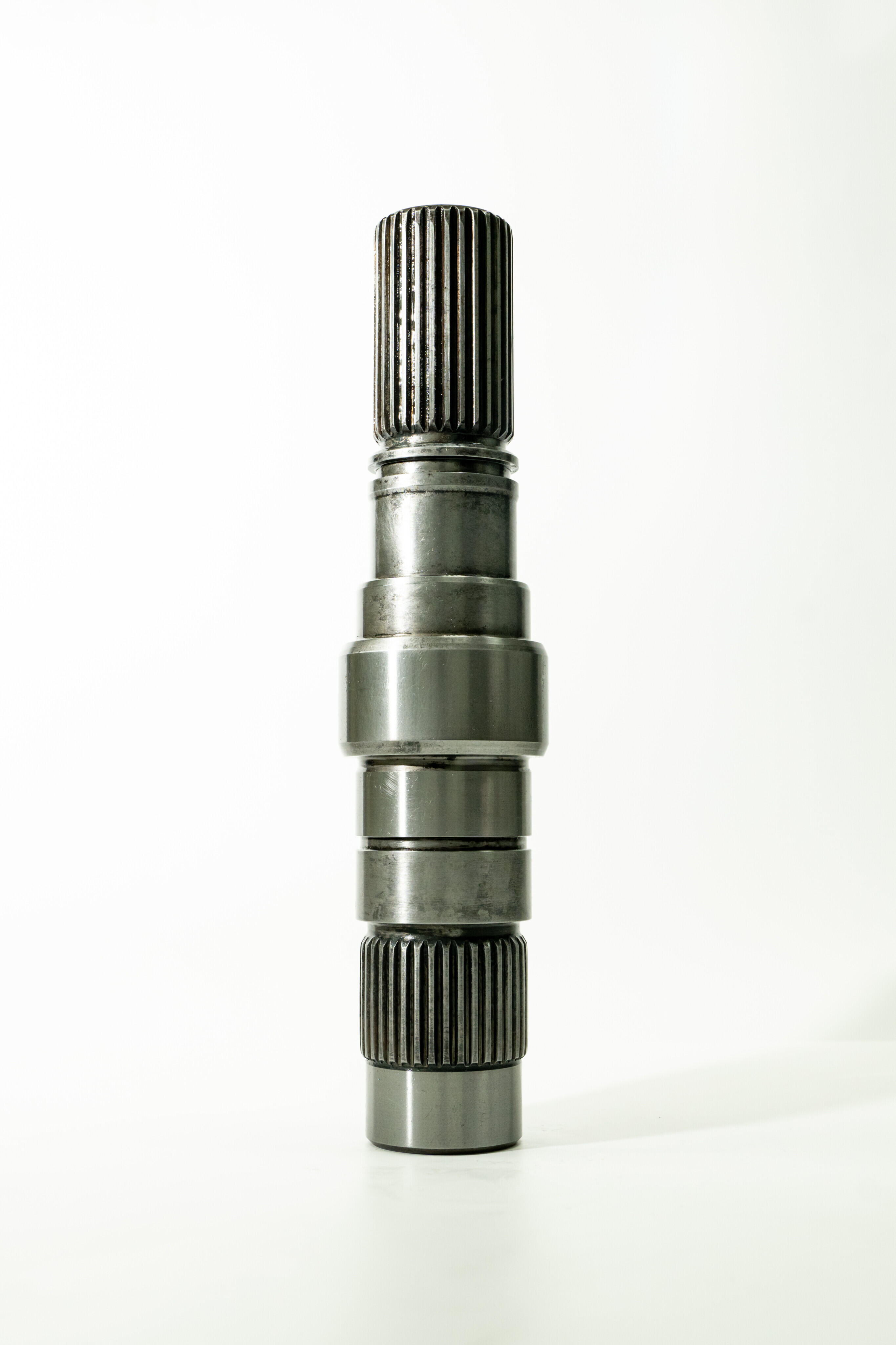

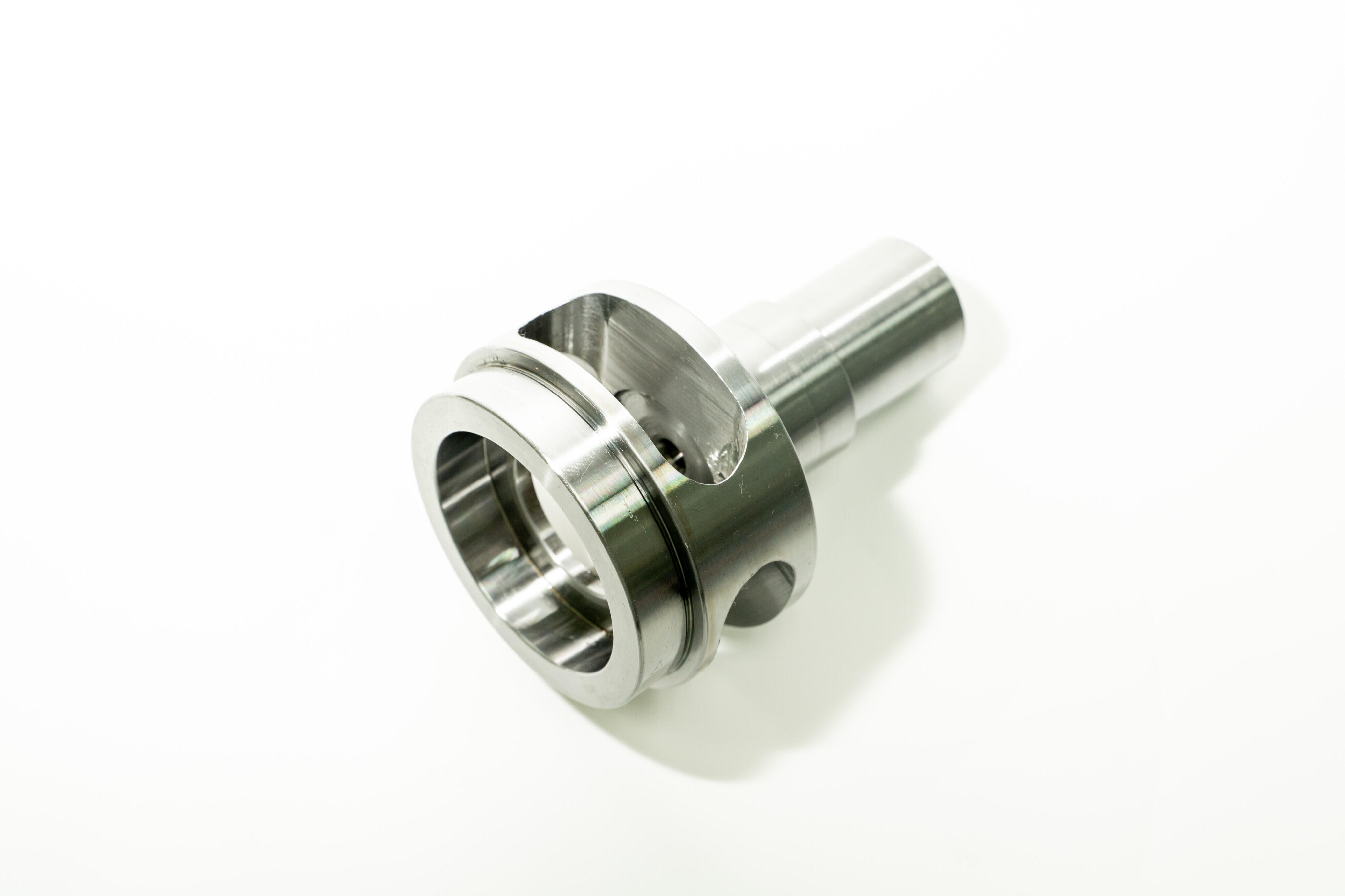

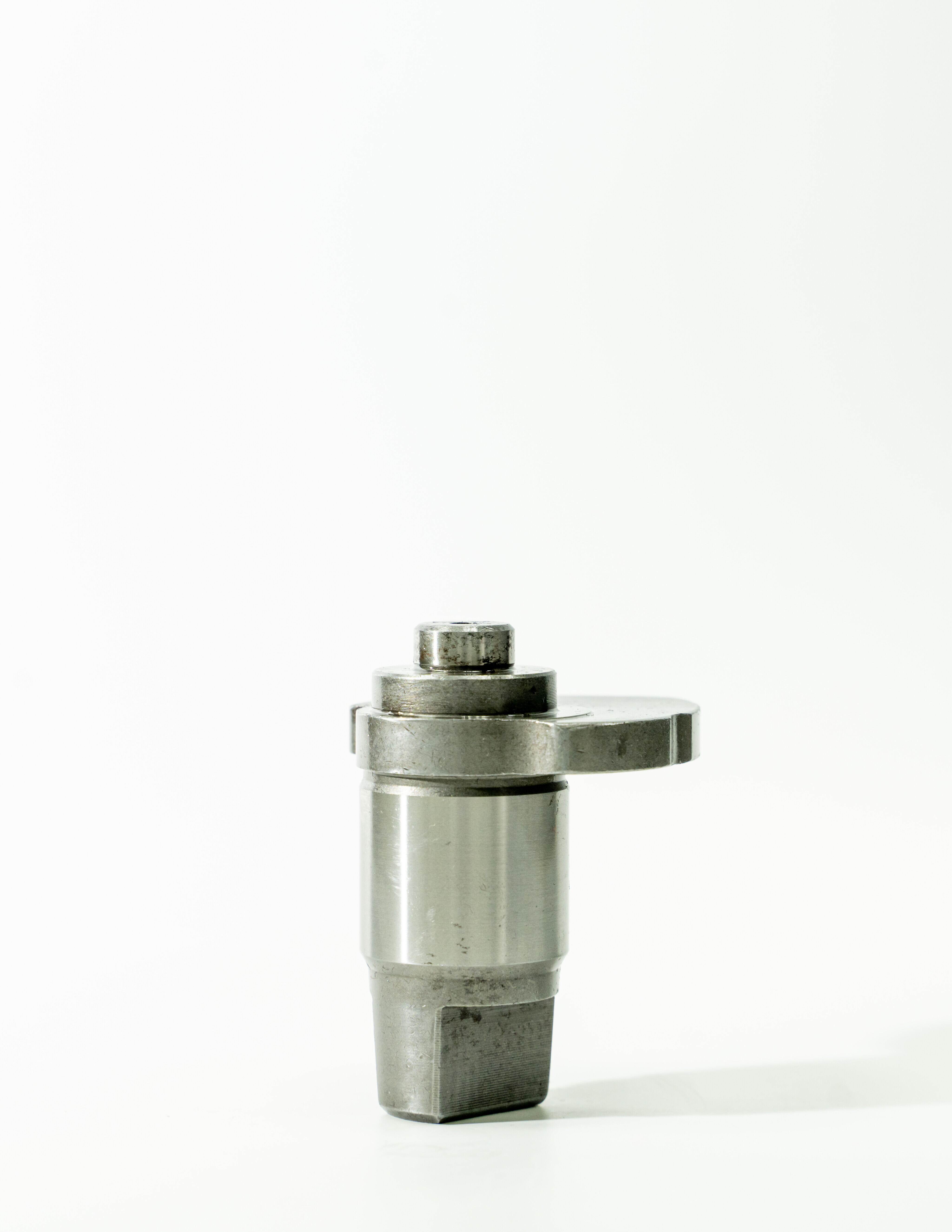

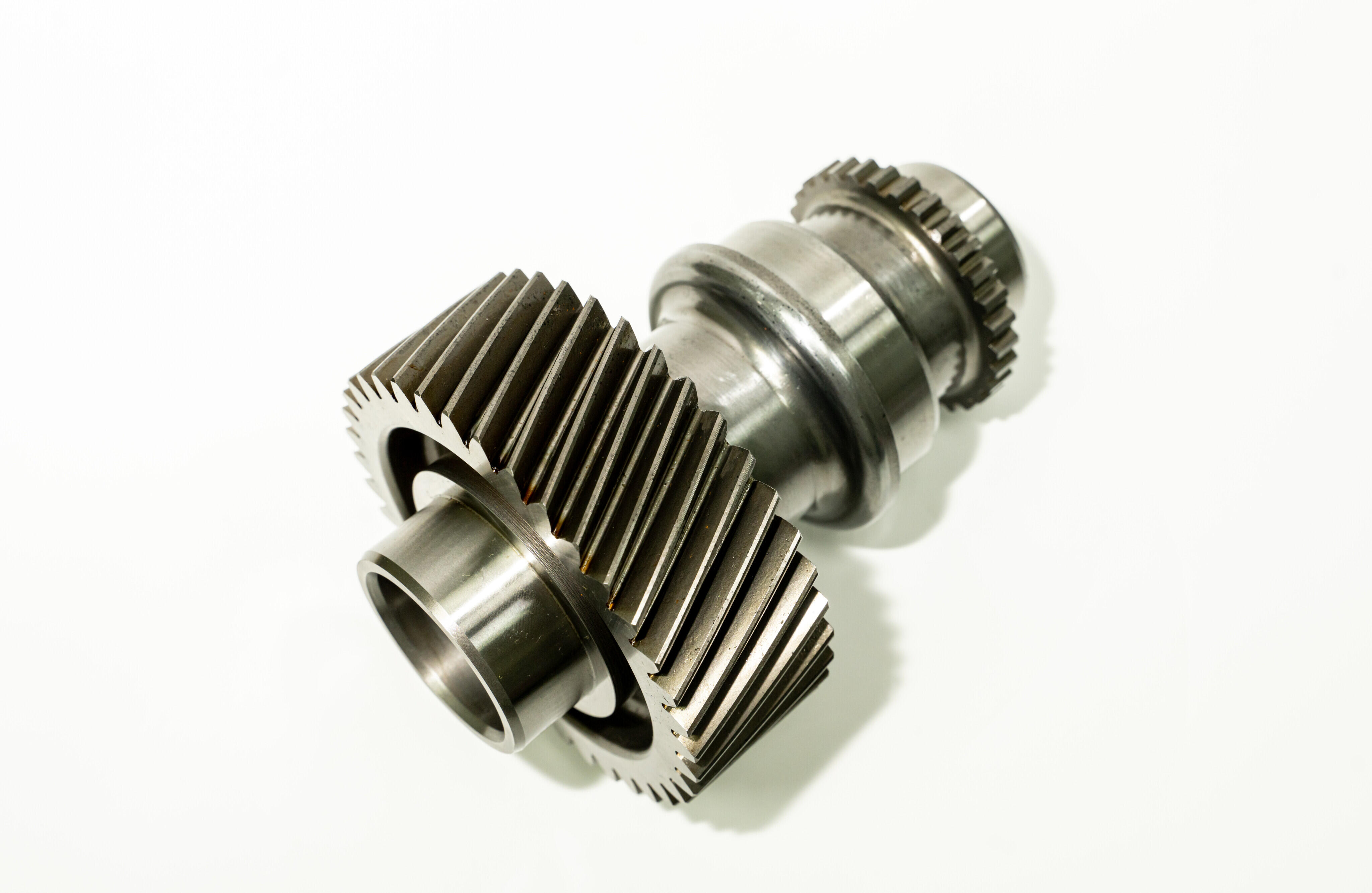

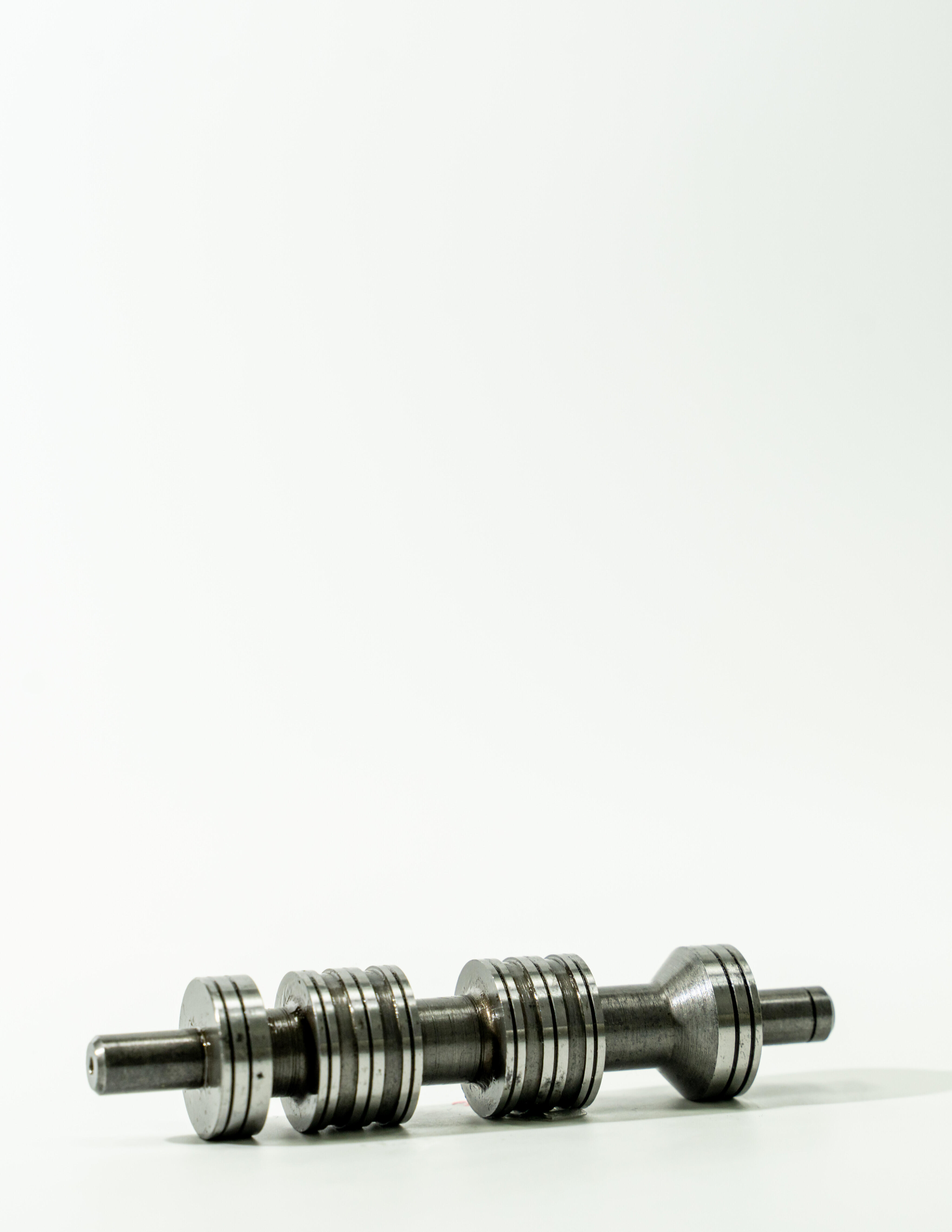

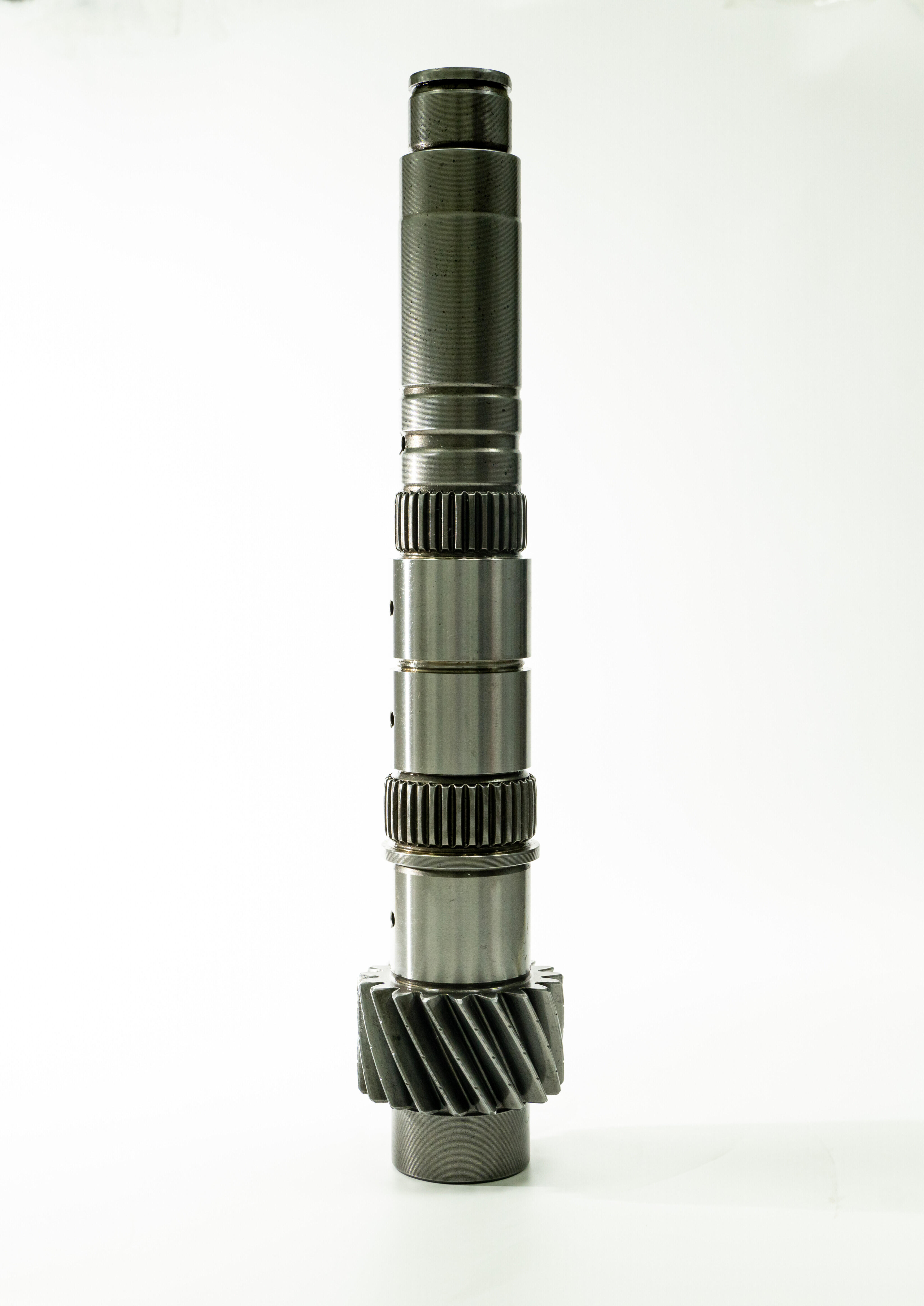

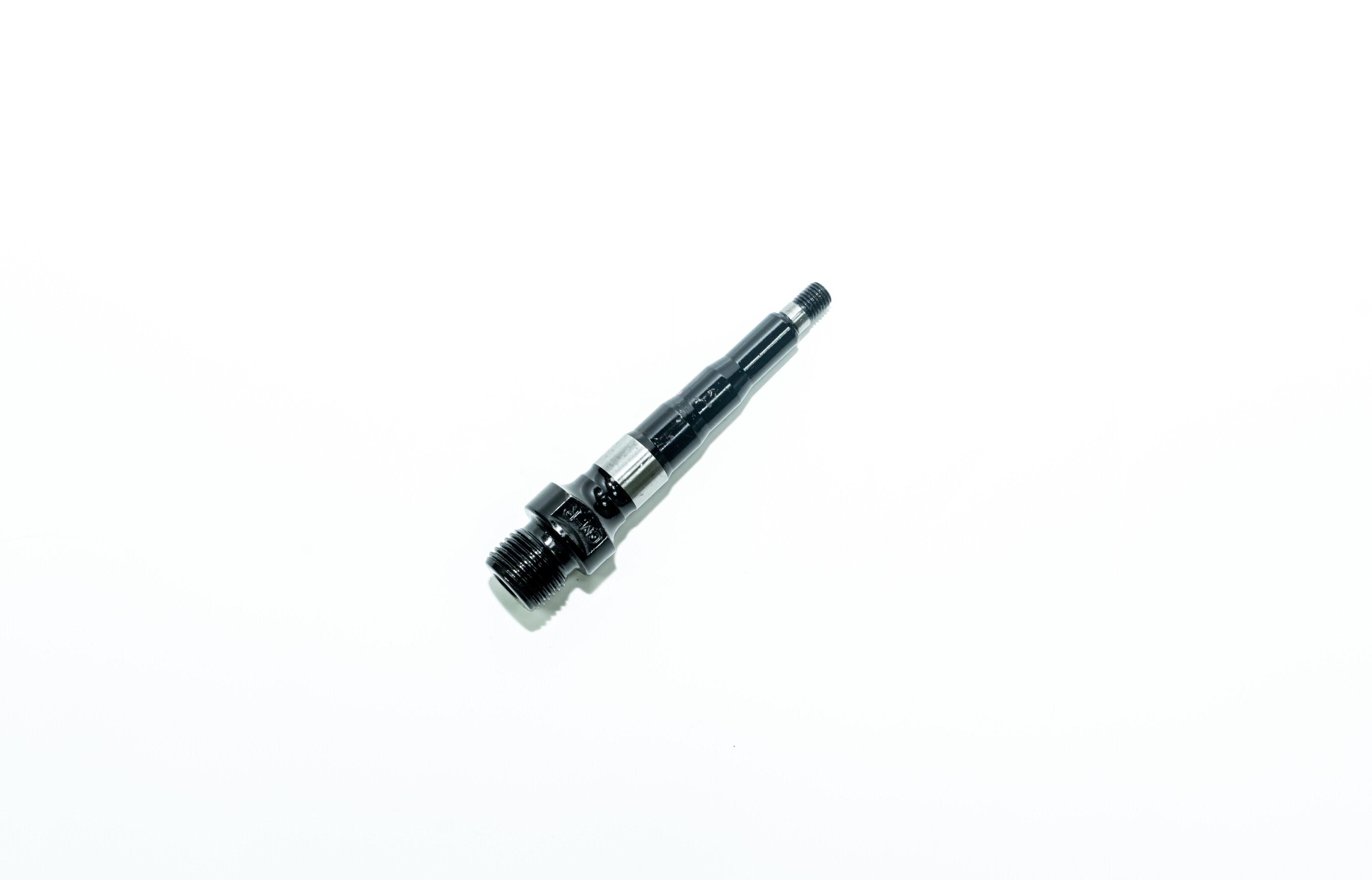

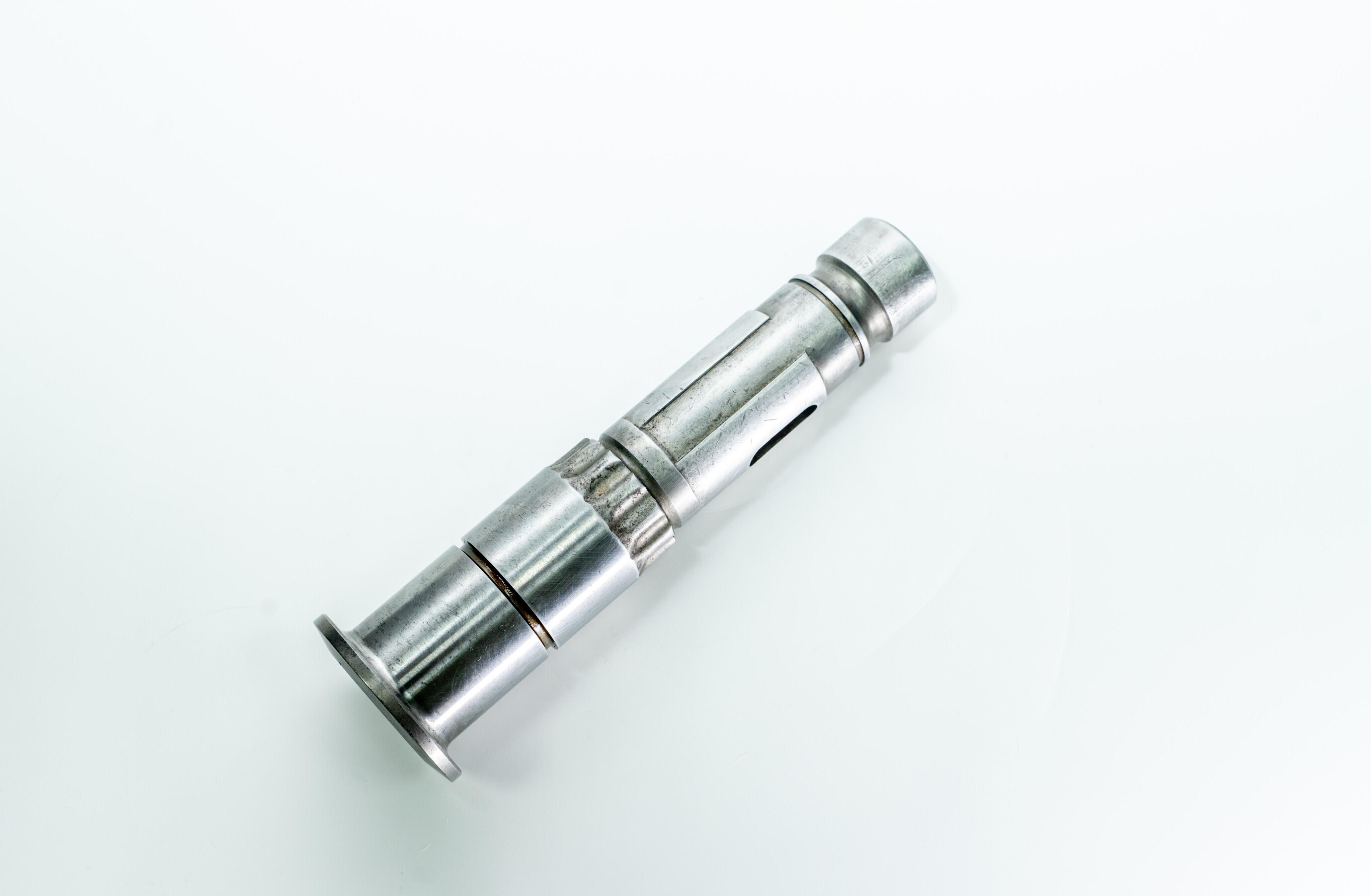

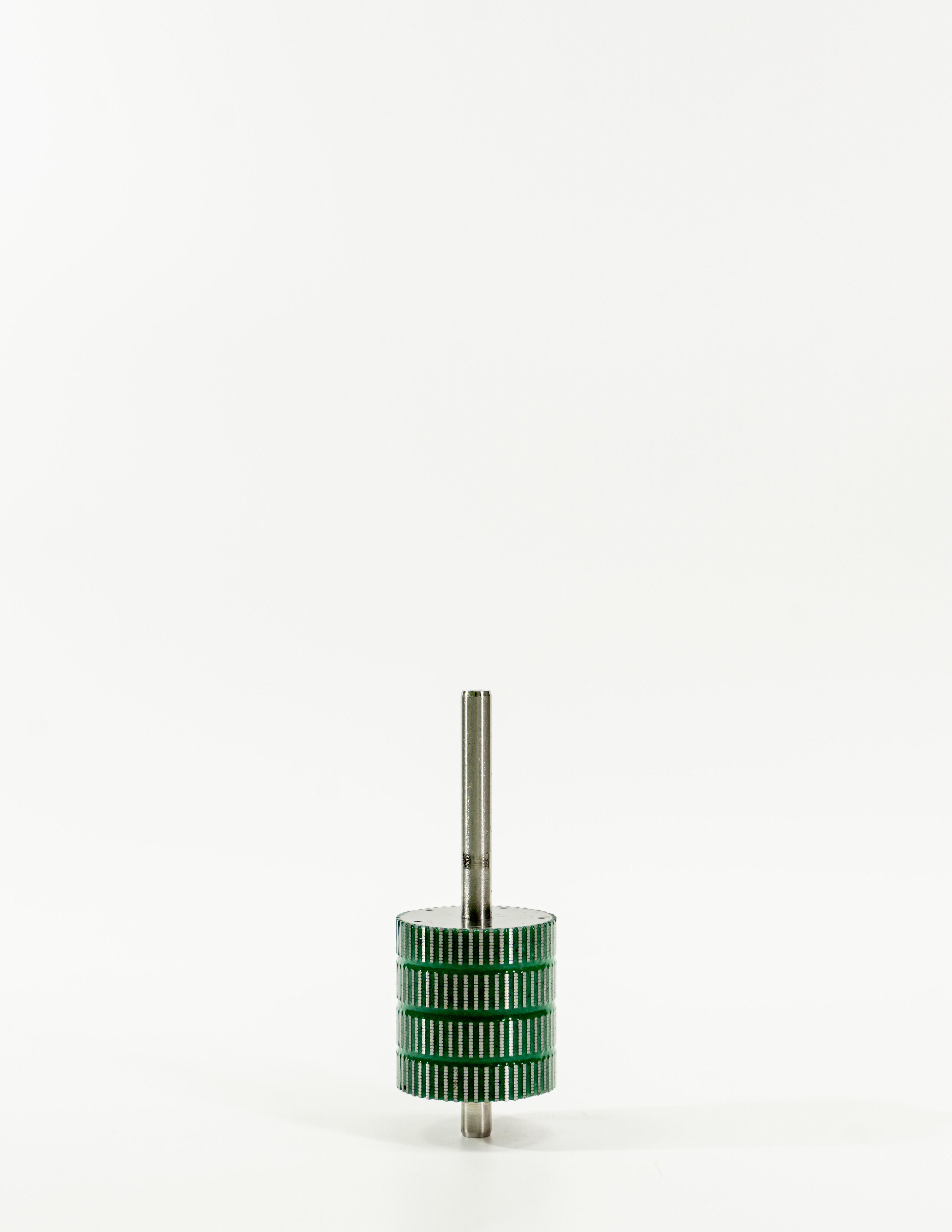

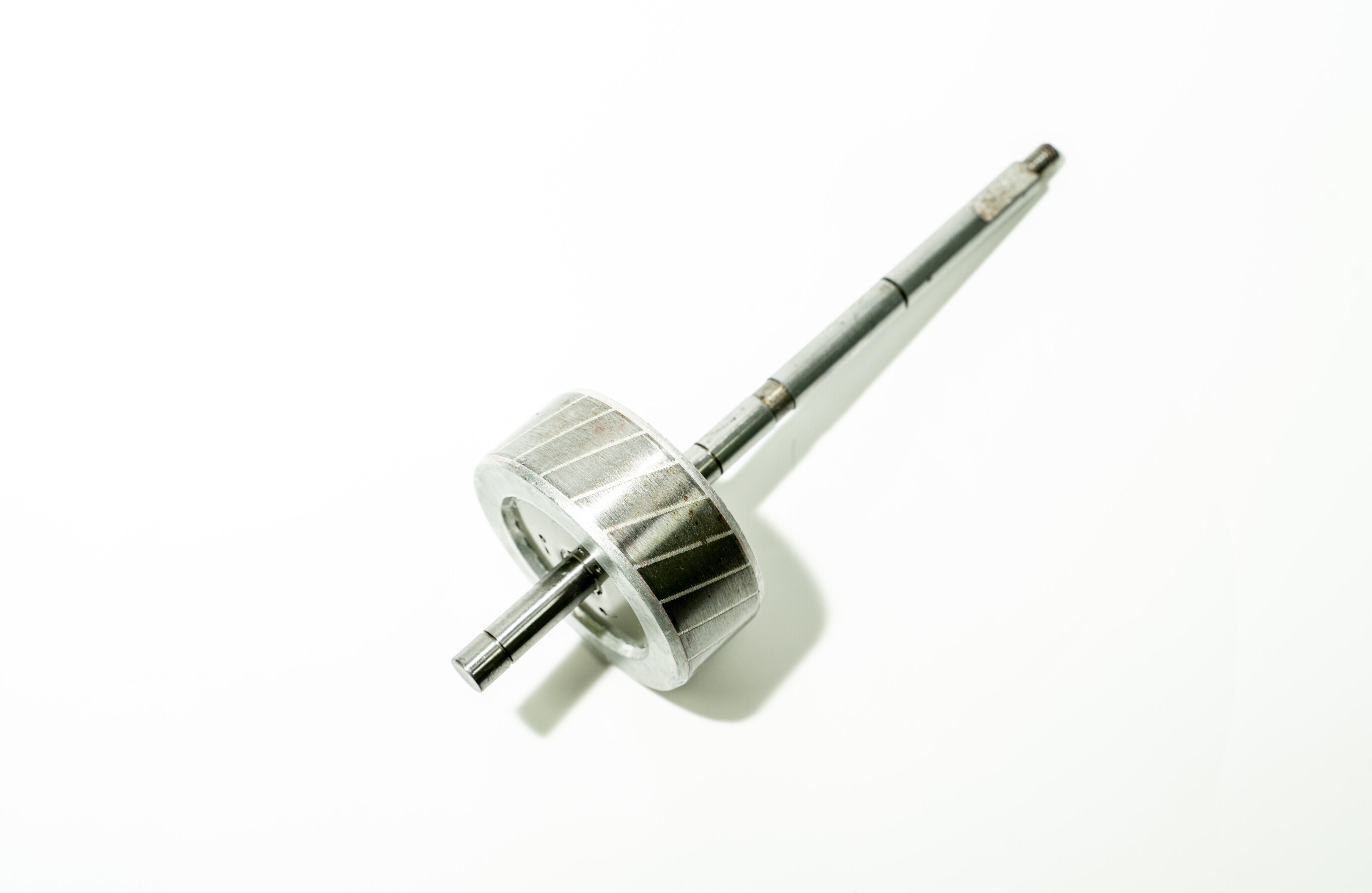

The heavily ribbed box-type base is made of Meehanite casting, providing excellent rigidity to ensure machine stability. Optimum distance between the guideways offers excellent table support to increase Z axis positioning accuracy and repeatability.
The sturdy rigid-designed workhead equipped with precision bearings is electronically controlled giving variable spindle speeds. Workhead swivels 90°counterclockwise to 30°clockwise for various grinding operations. A combination live and dead-type spindle allows for quick changeover from center to chuck operation or vice versa. A dual oil seal and cover prevent coolant seepage into the workhead.
The design of the tailstock is both rigid and robust. Housed in a Meehanite case body, the hardened nitralloy steel sleeve is designed to carry a MT3 center for G20P/G25P. Movement of the sleeve is adjusted by a knob to give a light or heavy load. An optional hydraulic tailstock with foot pedal is available for easy loading and unloading of parts.
Combinations of hydrostatic and hydrodynamic bearings are surrounded by a high pressure oil film, which eliminates metal-to-metal contact and provide high rigidity as well as high vibration damping performance. A pressure switch interlock prevents spindle start-up until oil pressure is established. The pressure switch interlock also stops the spindle if oil pressure fails. Both features ensure high accuracy and longer spindle life.
Both the double V and flat guideways are hand scraped and Turcite coated, and utilize an automatic lubrication system, precision ballscrew, AC servo motor and a 0.001mm (0.000020”) linear feedback system. This combination allows for a smooth movement of the wheelhead which delivers a longer way life with superior positioning accuracy and repeatability. The enlarged and properly sloped drainage troughs under the wheelhead base help to control thermal growth and provides the rapid coolant drainage needed during heavy grinding cycles.
The rigid table with box-type construction travels on a cushion of oil with no metal to metal contact. An automatic lubrication system operates continuously to ensure smooth movement and consistent accuracy. Z-axis positioning accuracy and repeatability is assured with an AC servo motor and high precision, pre-tensioned ballscrews. A swiveling table dial indicator enables rapid cylindrical corrections and taper grinding applications. The table is fully supported over the full travel to avoid any overhang.
Automatic Lubrication System
Slideways, ballscrews and spindle are continuously lubricated by an auto-lube system to ensure long service life and maintain maximum accuracy. Hydraulics coolant and lubrication systems are separated from machine to eliminate vibration and dissipate heat.
System for Automation
A highly-automated grinding system can be customized with a wide selection of optional equipment including an automatic OD sizing device, gap control, crash control and touch probe for axial positioning.
Optional Internal Grinding Attachment
The hinged, swing-down internal grinding attachment swings down into working position easily and quickly. A patented locking device adds safety as it prevents the ID attachment from swinging down abruptly.
|Description/Model||G32P / G38P / G45P - 50 / 60 / 75 / 100 / 150 / 200CNC|
|General Capacity||Swing over Table (mm)||Ø320 (Ø12.6") / Ø380 (Ø15") / Ø450 (Ø18")|
|Distance between Centers (mm)||500 (20")||600 (24")||750 (30")||1000 (40")||1500 (60")||2000 (80")|
|Max. Grinding Diameter (mm)||Ø300 (Ø12") / Ø360 (Ø14") / Ø430 (Ø17")|
|Max. Load Held between Cenetrs (kg)||150 (330lbs)|
|Grinding Wheel||Diameter x Width x Bore (mm)||Ø510 × 50~100 × Ø152.4 (Ø20" × 2"~4" × Ø6")|
|Wheel Speed (rpm)||1390|
|Max.peripheral speed (M/min)||2000~3600|
( X Axis )
|Rapid Feeding Speed (M/ min)||6|
|Infeed Travel (mm)||225 (9")|
|Min. Increment Infeed (mm)||Ø0.001 (Ø0.0001")|
|Spindle Type||Bearing Type|
|Workhead||Spindle Speed (Variable)(rpm)||Max.350|
|Center Taper (MT)||MT 4(Opt. MT 5)|
|Spindle Type||Fixed & Rotary|
|Diameter of Bore (mm)||Ø23 (0.9")|
|Tailstock||Quill Travel (mm)||25(1")|
|Center Taper (MT)||MT 4(Opt. MT 5)|
( Z Axis )
|Rapid Feeding Rate (M/ min)||8|
|Min. Increment Infeed (mm)||0.001 (0.0001")|
|Swivelling Angle C.C.W||9°||7°||5°||3°|
|Motor||Wheel Spindle Motor (kW)||5|
|Workhead Motor (kW)||1.5|
|Lubrication Pump||5.2 L/min 10kg/cm2|
|Hydraulic Pump||20 L/min 55kg/cm2|
|Coolant Pump||80 L/min 0.7kg/cm2|
|Wheel (X Axis) Motor (kW)||1.2|
|Wheel (Z Axis) Motor (kW)||1.2||1.8|
|Machine Weight||Net Weight (kgs)||5200 (11440lbs)||5600 (12320lbs)||5800 (12760lbs)||5800 (12760lbs)||6300 (13860lbs)||6700 (14740lbs)|
|Gross Weight (kgs)||5600 (12320lbs)||6420 (14124lbs)||7000 (15400lbs)||7500 (16500lbs)||7800 (17160lbs)||8200 (18040lbs)|
|Package Size (L x W x H - mm)||4520×2280×2260|
Remark：We reserve the right to modify the specification relating to any of the above machines wirhout notice.
- Balance System
- Crash Control
- Gap Control
- Touch Probe
- Auto Sizing Device
- I.D Attachment (Variable)
- 5c Collet Closer
- 5c Collets
- 3 Jaw Scroll Chuck
- 4-Jaw Chuck
- 4 Jaw Scroll Chuck
- Fixed Back Plate
- Adjustable Back Plate
- 2-Point Steady Rest
- 3-Point Steady Rest
- Z-Axis Digital Readout
- Spare Grinding Wheel
- Spare Wheel Flange
- Lube Oil Temperature Regulator
- Oil-Mist Separator
