GrindMaster SERIES
Description
3-Axes Complex CNC Internal Grinder
3-Axes Complex CNC Internal Grinder uses Computer-aided Numerical Controller to control the workhead (X axis),ID/OD wheelhead (W axis) and ID wheelhead (Z axis).With one time chucking action , the Grindmaster 45can perform complex and precision grinding operations, ie : internal diameter, outside diameter, shoulder grinding, taper grinder and end-surface grinding …etc.

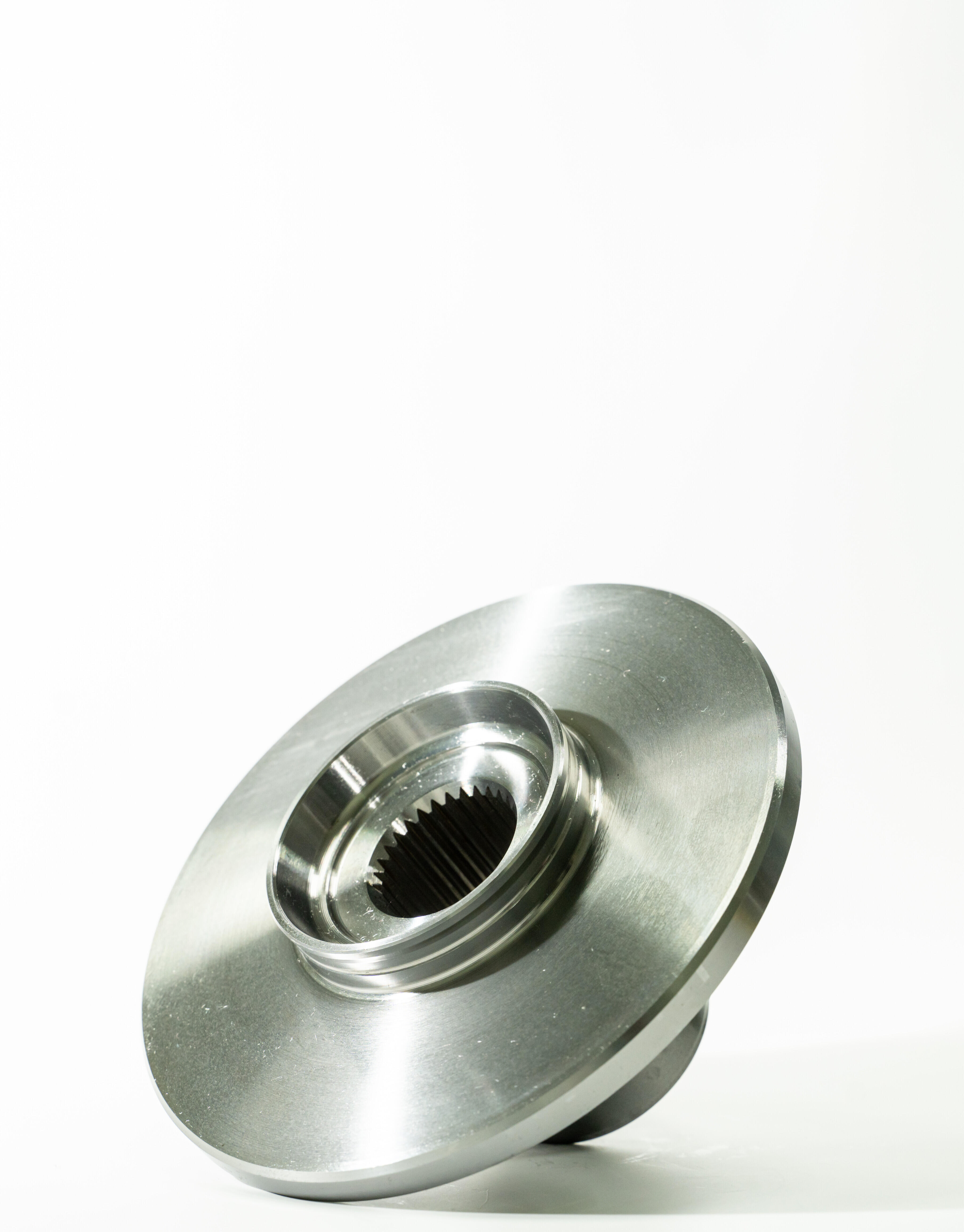

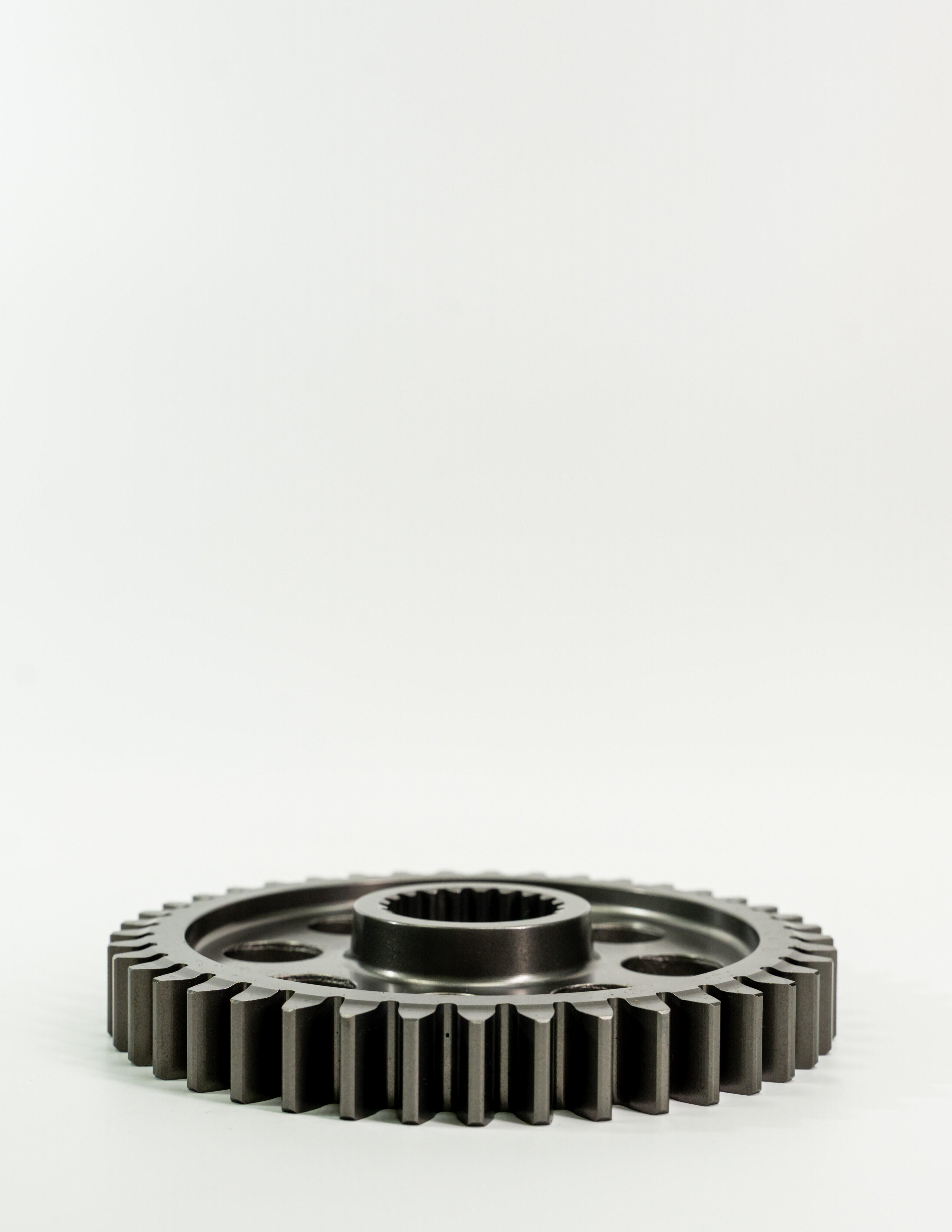

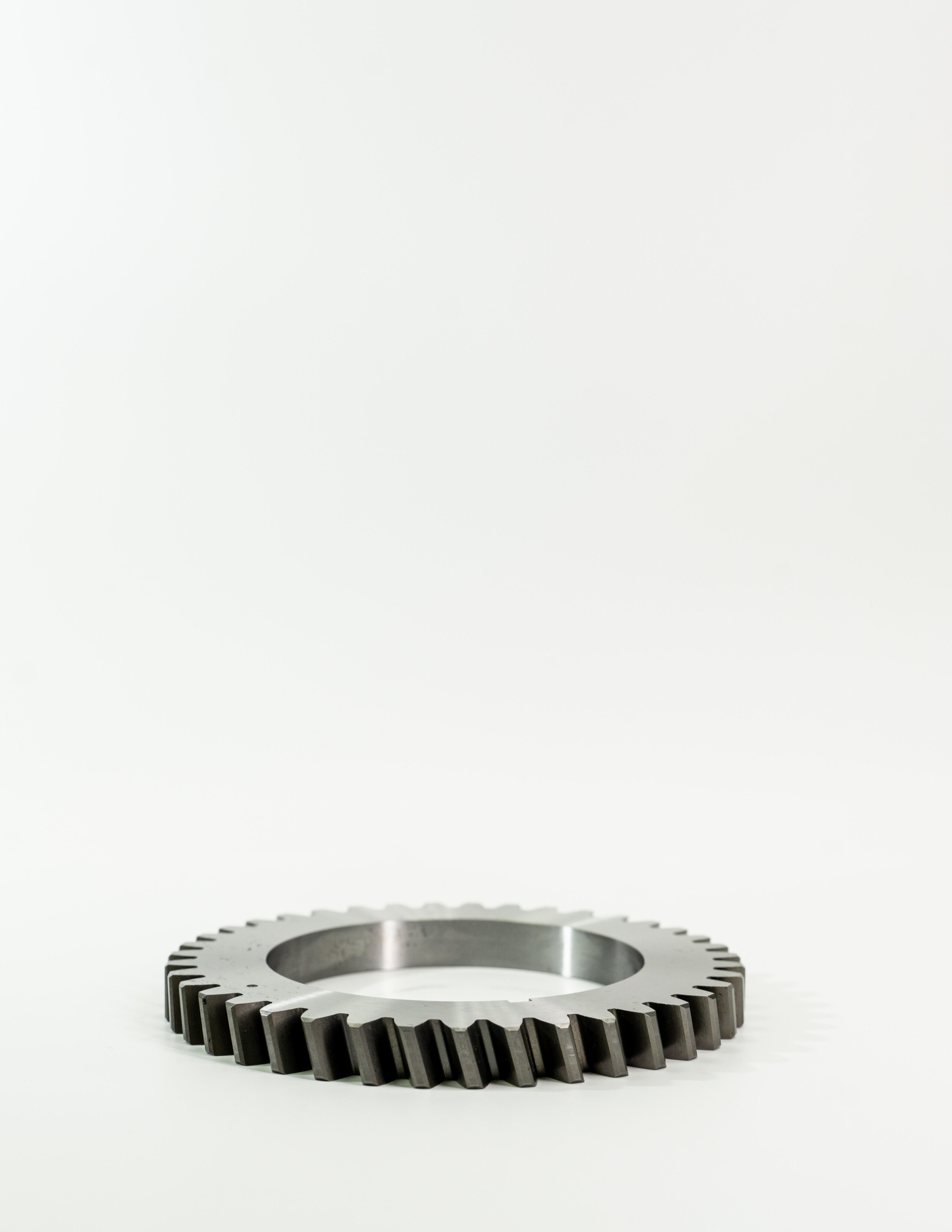

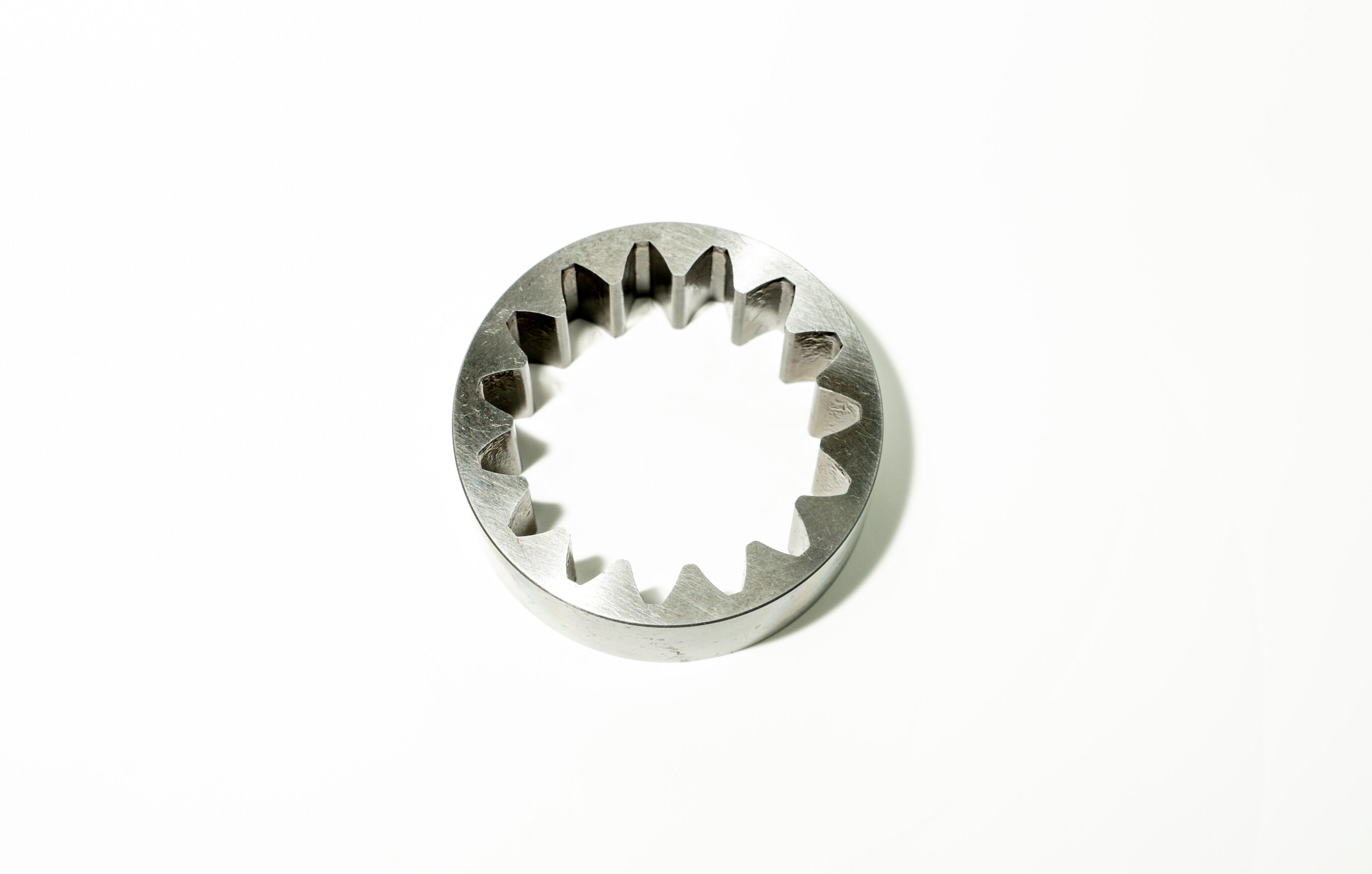

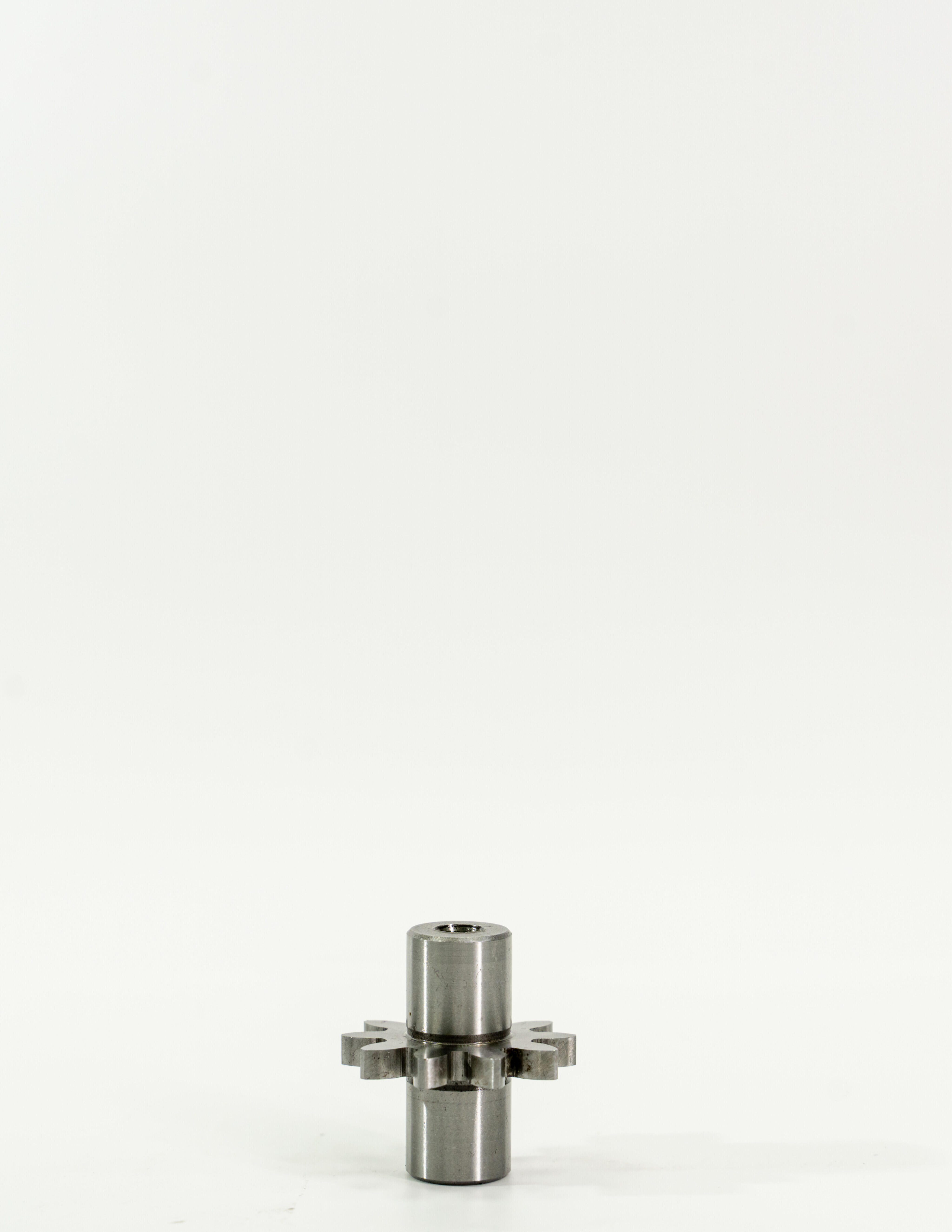

Grinding Operation Example:
- Internal diameter straight grinding operation / Outside diameter straight grinding operation.
- Internal diameter taper grinding operation / Outside diameter straight grinding operation.
- Internal diameter straight grinding operation / Outside diameter aper grinding operation.
The closed-loop system design of X-axis ensure high precision requirement for grinding operation. Further more, auto sizing devices can be chosen to reinforce accuracy performance of Grindmaster 45. Evolutional design of the W-axis swiveling function makes Grindmaster 45 meet the flexibility requirements of job shop manufacturing.
Specifications
| Description/Model | GM-35CNC | GM-45CNC | GM-80CNC | |
|---|---|---|---|---|
| General Capacity | Range of Grinding Internal Diameter (mm) | Ø6~ Ø200 (Ø0.2"~ Ø7.9") | Ø6~ Ø400 (Ø0.2"~ Ø16") | Ø6~ Ø600 (Ø0.2"~ Ø24") |
| Max. Grinding OD (mm) | Ø350 (14") | Ø450 (18") | Ø800 (31") | |
| Max. Workpiece Length (mm) | 200 (8") | 300 (12") | ||
| Swing over Tabel (mm) | Ø400 (16") | Ø500 (20") | Ø820 (32") | |
| Max. Load Held between Centers (kgs) | 50 (110lbs) | 80 (176lbs) | ||
| Workhead( X Axis ) Closed-Loop System | Type of Chuck | 6" Hydraulic Three Claw Chuck (opt. 8") | 8" Hydraulic Three Claw Chuck (opt. 10") | |
| Spindle Nose Specifications | A2-5 | A2-6 | ||
| Spindle Motor (kW) | 3 | |||
| Spindle Speed (Variable)(rpm) | Max. 1000 | |||
| X Axis Travel (mm) | 575 (23") | 600 (24") | ||
| Rapid Feeding Speed (M/ min) | 8 | |||
| Min. Increment Infeed (mm) | Ø0.001 (0.0001") | |||
| Wheel (X Axis) Motor (kW) | 1.2 | |||
| Swivelling Angle (Manual) | C.W. 30° / C.C.W. 30° | |||
| ID / ODWheelhead (Y Axis) | ID Spindle Motor (I/I) (kW) | 2.2 (2P) | ||
| ID Spindle Speed (I/I) (rpm) | 8000 / 15000 / 20000 / 30000 (choose one) | |||
| OD Spindle Motor (I/O) (kW) | 5.6 | |||
| OD Spindle Speed (I/O) (rpm) | 1800 | |||
| OD Grinding Wheel (I/O) (mm) | Ø405 × 50 × Ø127 (Ø16" × 2"× Ø5") | |||
| B Axis Swivelling Mechanism(I/I/O) | N/A | Automatic Servo Rotation | ||
| B Axis Rotation Servo Motor (I/I/O) (kW) | N/A | 1.2 | ||
| B Axis Swivelling Angle (I/I/O) | N/A | +120° / -30° | ||
| Wheelhead( X Axis ) Infeed Angle | 30° | 0°~20° | 0°~20° | |
| Y Axis Travel (mm) | 350 (14") | 500 (20") | ||
| Rapid Feeding Rate (M/ min) | 8 | |||
| Min. Increment Infeed (mm) | 0.001 (0.0001") | |||
| Y Axis Servo Motor (kW) | 1.2 | |||
| IDWheelhead ( Z Axis ) | ID Spindle Motor (I/I) (kW) | 2.2 | ||
| ID Spindle Speed (I/I) (rpm) | 8000 / 15000 / 20000 / 30000 (choose one) | |||
| Z Axis Travel (mm) | 400 | 500 | 500 | |
| Rapid Feeding Rate (M/ min) | 8 | |||
| Min. Increment Infeed (mm) | 0.001 | |||
| Wheel (Z Axis) Motor (kW) | 1.2 | |||
| Water Tank | Tank Capacity (L) | 260 | ||
| Coolant Pump | 80 L/min 0.7kg/cm2 | |||
| Hydraulic System | Cylinder Capacity (L) | 40 | ||
| Pump Motor Power (kW) | 1.5 | |||
| Machine Size/ Weight | Net Weight (kgs) | 4700 (10361lbs) | 7000 (15432lbs) | 7700 (16975lbs) |
| Gross Weight (kgs) | 5200 (11464lbs) | 7500 (16535lbs) | 8200 (18079lbs) | |
| L x W x H (mm) | 580 × 230 × 225 (23" × 9"× 8.8") | |||
Remark：We reserve the right to modify the specification relating to any of the above machines wirhout notice.
Features
- Spare Wheel
- Spare Wheel Flange
- Spare Internal Grinding Spindle
- Transformer
- CE Mark
